| LASER |
MACHINE'S
MODEL |
|
TLV-700 |
LMC-1200-0.7
|
LMC-3000-0.7
|
|
|
TLV-1000 |
|
LMC-3000-1.0
|
LMC-6000-1.0
|
|
TLV-1500 |
|
LMC-3000-1.5
|
LMC-6000-1.5
|
|
TL-3 |
|
LMC-3000-3.0
|
LMC-6000-3.0
|
|
TL-5М |
|
LMC-3000-5.0
|
LMC-6000-5.0
|
|
TL-6 (TANDEM) |
|
LMC-3000-6.0
|
LMC-6000-6.0
|

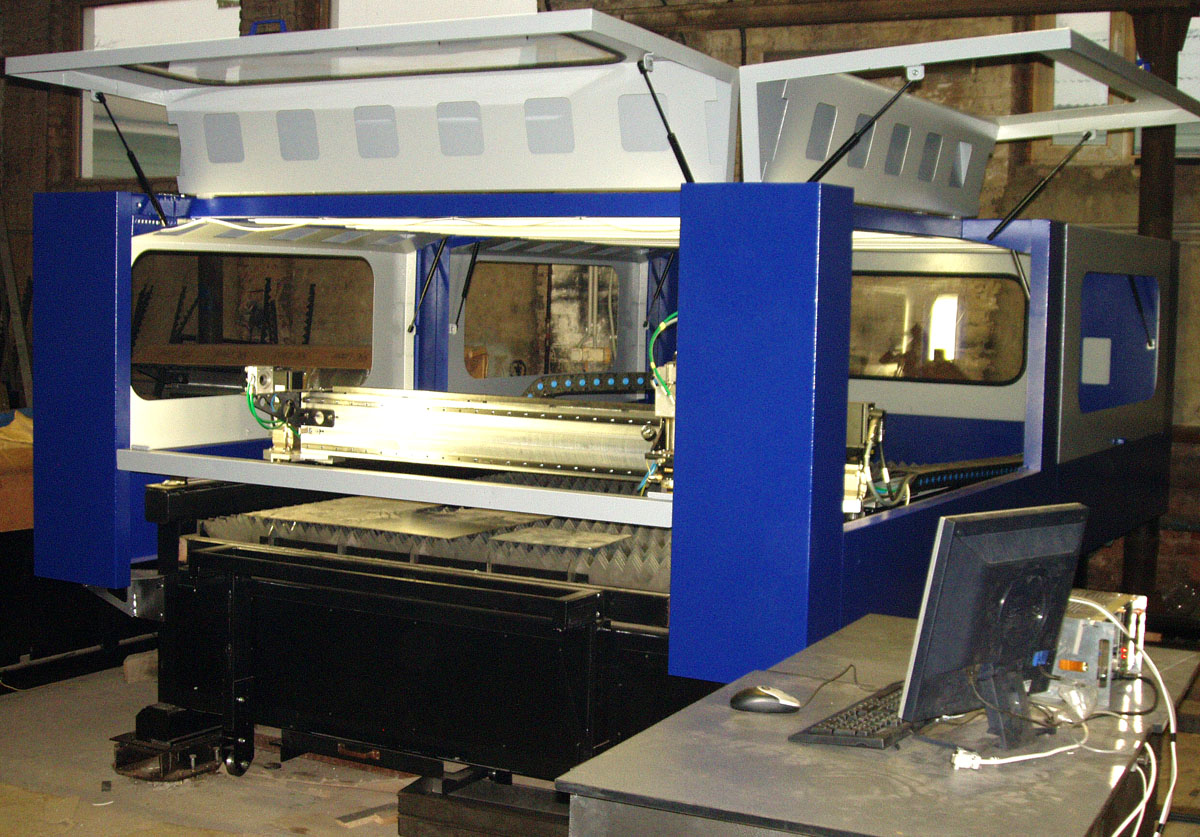

The table
coordinate horizontal configuration, portal type with " flying
optics " is executed as two longitudinal farms connected by cross
beams. On a base horizontal surface of longitudinal farms are
established linear directing and gear рейки, determining moving of a
portal along an axis "X" . Loading table is intended for submission of
a processable material in a working zone of a coordinate table. On a
frame of the loading device " the working field ", consisting from 5
longitudinal and 65 cross "knifes" is established. Moving of the
loading device is carried out manually.
The portal is made of an aluminium alloy. At end faces of a portal
executive mechanisms, providing longitudinal moving are established. On
a portal as are established directing and gear рейка, providing to the
similar executive mechanism moving of the carriage along an axis "Y".
On the carriage the technological platform for installation
Z-coordinate with a laser cutting torch is stipulated.
| TABLE'S CHARACTERISTICS |
MACHINE'S
MODEL |
| LMC-1200-X.X |
LMC-3000-X.X |
LMC-6000-X.X |
| Work
area size |
x
|
1200 mm
|
3000 mm
|
6000 mm
|
|
y
|
840 mm
|
1600 mm |
1600 mm |
|
z
|
100 mm
|
|
Moving speed
|
x, y
|
50 m/min
|
|
z
|
1 m/min
|
|
Cutting speed
|
x, y
|
up to 20 m/min
|
|
Machining accuracy
|
x, y
|
0.1 mm
|
| Accuracy of positioning |
z |
0.1 mm
|
| Auto-focusing
accuracy |
0.1 mm
|
|
