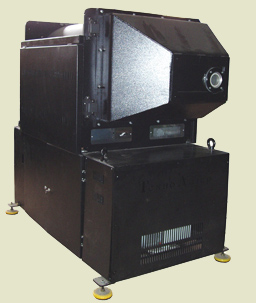

INDUSTRIAL LASER TL-3




Application:
  • cutting of metallic materials:
  • cutting of mild steel with oxygen (thickness up to 14 mm);
  • cutting of stainless steel with nitrogen (thickness up to 8 mm);
  • cutting of aluminium alloyes (thickness up to 6 mm); welding of metallic materials;
  Features:
  • stable-unstable resonator
  • high quality and long-term stability of output beam
  • enhanced operation reliability
  • helium-free operating possibility
  • full automated
Technical data

Beam wavelength mm 10.6
Beam maximum power kW 3.0
Beam rated power in long-term regime  kW 2.5
Beam power instability % 2
Beam power control limits kW 0.25...3.0
Beam aperture  mm 20x20
Beam divergence mrad 1.5
Gas consumption  (CO2:N2+O2:He) l/h 3:22:31
Cooling water consumption l/h 2200
Required electric power kW up to 40

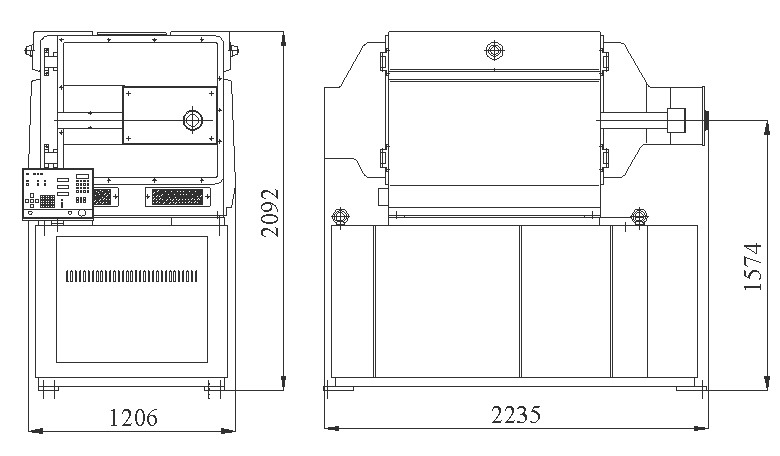

Dimensions mm 2430x1210x2200
Weight kg 1700
