INDUSTRIAL LASER TL-5M




Application:
  • cutting of mild steel (thickness up to 20 mm)
  • welding of metallic materials(thickness up to 8 mm)
  • heat treating
  • alloying
  Features:
  • resonator

    - stable-unstable

  • - unstable

  • high quality and long-term stability
  • enhanced operation reliability
  • automatic self-adjustment
  • helium-free mixture operating capability
  • full automated
Technical data

Beam wavelength mm 10.6
Beam rated power in long-term regime  kW 5.0
Beam power instability % 3
Beam power control limits kW 0.40...7.5
Beam aperture mm 20x20;
ring 50/22
Beam divergence mrad 1.2
Gas consumption  (CO2:N2:He) l/h 15:150:70
Cooling water consumption l/h 6000
Required electric power kW up to 100

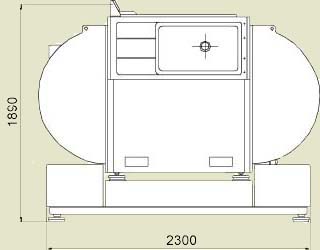

Dimensions mm 2200x2300x2500
Weight kg 4000
